Spectrofluorometer

For scientists performing biomolecule structure studies, advanced materials research, and quantum yield calculations who need confidence in the spectral purity of their measurements under a variety of conditions, the FP-8000 Series Spectrofluorometers provide an optical bench designed specifically for high sensitivity measurements with an expanded, wide dynamic range and automatic cut-off filters to exclude higher order diffraction.

FP-8200 Spectrofluorometer


Instrument Features

• High throughput optical system
• Highest S/N performance
• Wide dynamic range (at least 6 orders of magnitude)
• Auto Gain and Auto Sensitivity Control System
• Automatic cut-off filters for higher-order diffraction
• High speed scanning
• Advanced digital signal processing
• Spectral Correction
• Spectral bandwidth down to 1 nm


Spectrofluorometer Lineup

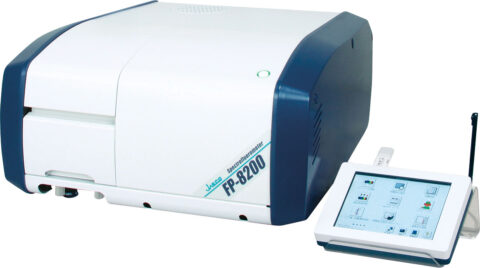

FP-8200 Spectrofluorometer

A compact model for routine measurements such as spectral scanning, temperature dependent measurement and quantitation.

• High sensitivity S/N > 1,500 (RMS, water Raman, bandwidth: 10 nm)
• Dynamic range up to six digits
• High speed scanning up to 20,000 nm/min.
• Wavelength range: 200 – 750 nm (900 nm optional)
• Higher order diffraction cut-off filter (optional)

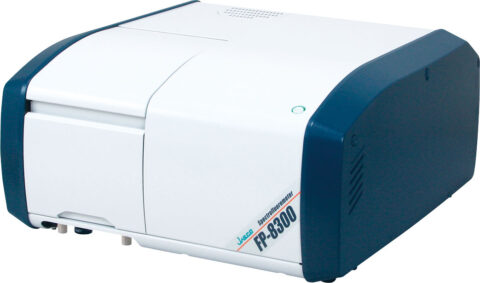

FP-8300 Spectrofluorometer

Sophisticated optical system with additional features for biological applications.

• High sensitivity S/N > 680:1 (RMS, water Raman, bandwidth: 5 nm)
• High resolution of 1.0 nm
• Wavelength range: 200 – 750 nm (900 nm optional)

FP-8300 Spectrofluorometer

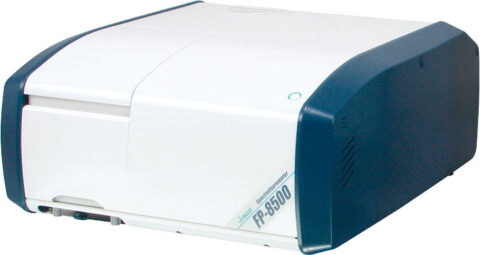

FP-8500 Spectrofluorometer

The highest sensitivity and optimal spectral accuracy model with a wide range of accessories for maximum flexibility.

• High sensitivity S/N 1,200:1 (RMS, water Raman, bandwidth: 5 nm)
• High-speed scanning up to 60,000 nm/min.
• Wavelength range: 200 – 750 nm (850 nm optional)
• Validation accessory comes standard

FP-8500 Spectrofluorometer

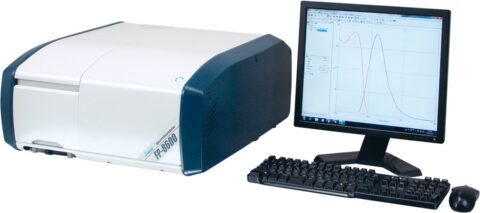

FP-8600 Spectrofluorometer

For extended wavelength operation into the near infrared.

• High sensitivity S/N > 600 (RMS, water Raman)
• High-speed scanning up to 120,000 nm/min.
• Wavelength range: 200 – 1010 nm Emission (850 nm, Excitation)
• Validation accessory as standard

FP-8600 Spectrofluorometer

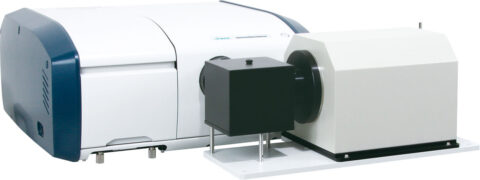

FP-8700 Spectrofluorometer

With a liquid nitrogen PMT detector for applications that require high sensitivity measurements into the near infrared (1700 nm).

• Liquid N2 cooled PMT
• Excitation wavelength 200 – 850 nm
• Emission wavelength 300 – 1400 nm (1700 nm as option)
• Spectral correction
• Option for lower excitation

FP-8700 Spectrofluorometer
