UV-Visible/NIR

For scientists performing spectral characterization, thermodynamic studies, and quantitative measurements for advanced bio- and materials research, who need confidence in the accuracy and reproducibility of their measurements and rely on the results. JASCO UV-Visible/NIR spectrophotometers provides an excellent optical system with wide wavelength range for a diverse array of applications.

V-700 Series comprises five distinct models covering the entire spectrum from the far-UV (187 nm) to the near-IR (3200 nm). The compact optical design of the V-700 Series of UV-Visible spectrophotometers significantly reduces the requirement for bench space in the modern laboratory. The system features of V-700 series are as below;

  • Compact Design
  • Wide Wavelength Range
  • Excellent Optical Performance
  • High Speed Scanning
  • Dark Correction
  • User-Friendly Operation
  • Wide Range of Accessories and Applications software
  • IQ Start
  • Regulatory Compliance

MSV-5000 Series UV-Visible/NIR Microspectrometers can be used for a broad range of applications including the measurement of transmittance/reflectance spectra, band gap, film thickness, evaluation of the optical characteristics of functional crystals and color analysis of microscopic samples.

MV-3000 Modular UV-visible/NIR spectrophotometer has several different wavelength options for varied applications. It also has different source options to match to the spectrophotometer (or has no source for applications that study luminous emissions). The system features of MV-3000 are as below;

  • Compact and robust
  • High-speed measurement at 5 msec.
  • Maximum 1,000 consecutive spectrum measurement
  • Synchronized measurement function from an external signal
  • Bright optical system (f-number 3.5)

UV-Vis/NIR spectrophotometer Lineup

V-730 UV-Visible Spectrophotometer

The V-730 is a general-purpose double beam spectrophotometer with a compact space-saving design. Its excellent spectroscopic performance is suitable for routine QC, teaching and research applications.

  • Wide wavelength range: 190 – 1100 nm
  • Stray light 0.02 % for exceptional absorbance linearity up to 3 Abs

V-730 UV-Visible Spectrophotometer

V-750 UV-Visible Spectrophotometer

The V-750 UV-Vis spectrophotometer includes a precision double-beam optical system with variable spectral bandwidth.

  • Wide wavelength range: 190 – 900 nm
  • Stray light 0.005 % for exceptional absorbance linearity up to 4 Abs in the UV-Visible region (and up to 5 Abs in the visible region*)
    *Measurement of KMnO4 solution.

V-750 UV-Visible Spectrophotometer

V-760 UV-Visible Spectrophotometer

The V-760 double beam, double monochromator optical design with lowest stray light (0.00008 %) offers high absorbance linearity across the entire photometric range.

  • Wide wavelength range: 187 – 900 nm
  • Low stray light 0.00008 % for exceptional absorbance linearity up to 6 Abs in the UV-Visible region (and up to 8 Abs in the visible region*)
    *Measurement of KMnO4 solution.

V-760 UV-Visible Spectrophotometer

V-770 UV-Visible/NIR Spectrophotometer

The V-770 offers the unique benefit of single monochromator for higher optical throughput compared to double monochromated systems. This is especially useful for diffuse and specular reflectance measurements in the NIR where signal to noise can be a problem.

  • Wide wavelength range: 190 – 2700 nm (3200 nm as option)
  • Stray light 0.005% (UV-visible) to 0.04 % and 0.1 % (NIR)

V-770 UV-Visible/NIR Spectrophotometer

V-780 UV-Visible/NIR Spectrophotometer

The V-780 has the same unique benefit as the V-770 of a single monochromator for higher optical throughput, but also has improved sensitivity from the InGaAs detector with better response in the NIR.

  • High sensitivity PMT and InGaAs detectors
  • Wide wavelength range: 190 – 1600 nm

V-780 UV-Visible/NIR Spectrophotometer

MSV-5000 Series UV-Visible/NIR Microspectrometer

JASCO can provide the following models; MSV-5100, MSV-5200 and MSV-5300. MSV-5100 is a UV-Visible microscope with a wavelength range of (200 – 900 nm). MSV-5200 includes a Peltier-cooled PbS detector with variable spectral bandwidth,  wavelength range of (200 – 2700 nm). MSV-5300 uses an InGaAs detector to obtain optimized NIR measurements, wavelength range of (200 – 1700 nm).

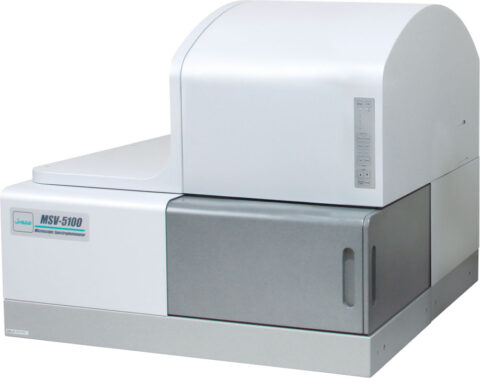

MSV-5100 UV-Visible Microspectrometer

MV-3000 Series Portable UV-Visible Spectrophotometer

MV-3000 is the powerful tool for the following application;

  •  in-situ measurement (color diagnosis, quantitative analysis)
  • Monitoring production lines (thin films, reflectance or transmittance , turbidity measurement)
  • High-speed measurement (high-speed time-course measurement, stopped flow kinetics, mapping measurement)
  • Emission measurement (light source evaluation, non-contact temperature measurement)

JASCO can provide the following models; MV-3100 (200 – 800 nm), MV-3200 (350 – 950 nm) and MV-3300 (900 – 1600 nm)

MV-3100 Portable UV-Visible Spectrophotometer
