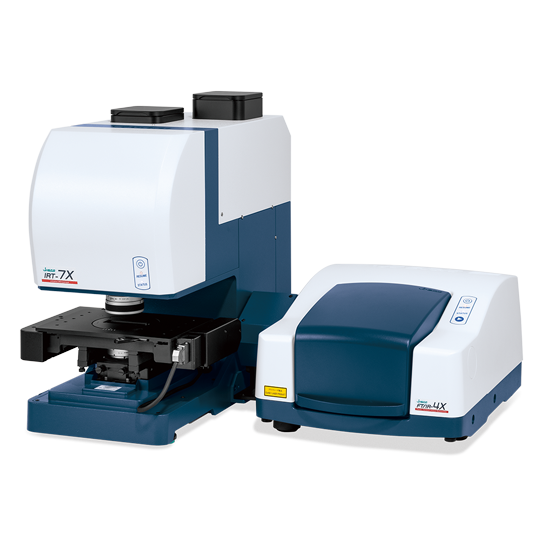

The IRT-7X Multichannel Infrared Microscope delivers high-definition infrared imaging with unprecedented speed, thanks to its dramatically enhanced optical observation quality and sophisticated digital processing of its high-speed linear array detector. It takes foreign object analysis and materials research—through observing, measuring, and analyzing—to the next level.
Features of IRT-7X
Fast IR Imaging
- High-Speed Measurement at 160 Hz
- Advanced Digital Processing for Real-Time Monitoring
High-Quality Observation
- Optimized Observation Optics
- Electric Iris Mechanism
- Polarization Observation Function
- Multiple images
- Spiral Imaging
- Simultaneous Monitoring of Measurement and Observation
Automation & Usability
- Operation Improvement by Newly Designed User-Interface of Micro Measurement Program
- Measurement Support Functions
- Autofocus
- Auto-Correct – Automatic Condenser Mirror Adjustment –
- Condenser Mirror Slide-In Mechanism
- Hardware Replacement Navigation
Unique Innovative Technology
- Innovative IQ Mapping technology (JASCO patent)
- Example of ATR imaging measurement using the ClearView ATR and IQ Mapping
Various Analyses
- Analysis Wizard
- Chemical Image
- JASCO Particle Analysis
- Disrelation 2D Correlation Mapping (Optional)
- Enhancement of Analysis Accuracy with IQ Frame (Optional)
- Combined Analysis Using Infrared and Raman Microscopes
