The IRT Series of FTIR microscopes can be easily paired with either the FT/IR-4X or FT/IR-6000 Series spectrometers to create systems for materials identification and sample imaging.
The IRT-5000 and IRT-7000 microscopes are permanently aligned with an external optical port for automatic switching between measurement modes without optical alignment. All models can be used for transmission, reflectance and ATR sample measurement, with a choice of manual or automatic XYZ stages. Their instrument features are as below;
FT/IR-6700 + IRT-7200 FTIR microscope system
- Transmission and Reflection with a choice of magnifications
- ATR measurement with many prism options including ‘view through’ options
- High optical throughput using high quality reflective components
- Wide wavenumber range: 15,000 – 400 cm-1
- Excellent signal to noise ratio with a range of MCT and other detectors including electrically cooled DLaTGS.
- High spatial resolution
- Full vacuum option for sensitive measurement without noise from environmental gases
- IQ Mapping for in-situ mapping experiments for high speed or samples that can be easily damaged when the ATR is moved
- Rapid IR Imaging experiments for kinetics using Rapid Scan
- Spectra Manager Imaging Suite – a fast an powerful interface for mapping and imaging
- Exceptional visual observation quality with DIC and polarization options
- Dynamic Imaging with Rapid Scan and Step-Scan options
- Multivariate analysis PCA
The simple IRT-1000 microscope fits directly into the sample compartment and can be exchanged as easily as an ATR.
FTIR Microscope Lineup

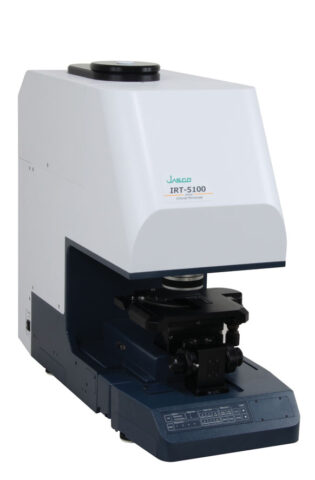

IRT-5100 Infrared Microscope
IRT-5100/5200 Infrared Microscopes
With an expandable spectral range and high-clarity visual observation, the IRT-5000 series features:
• IQ Mapping* for sample imaging without moving the stage
• Automatic XYZ stage with joystick control
• Dual detectors and user-swappable detectors
• Multiple objectives with automatic switching
• Spectrum preview to check conditions before measurement
• Data storage linked with sample image and measurement information
*IQ Mapping is an option on the IRT-5100
Specifications – IRT-5100/5200 –
| IRT-5100 | IRT-5200 | |
| Measurement Method | Transmittance/Reflectance measurement | |
| Standard Detector | DLATGS detector (7800-400 cm -1 ) | Single mid-band MCT (7800-600 cm -1 ) |
| Microscope Objectives | Cassegrain: 16 x 32 x or 10 x | |
IRT-7100 Fully Automated FTIR Microscope
IRT-7100/7200 Multi-Channel/Automated IR Microscopes
With a fully automated sample stage, autofocus and up to four objectives, the IRT-7100 features:
• Dual detector and user-swappable detectors
• IQ Mapping
• Field upgrade for ultrafast IR imaging
The IRT-7200 linear array FTIR microscope, has the same features as the IRT-7100 model plus:
• Linear array imaging detector
• Ultrafast IR Imaging function up to 9,600 data/min.
• Dynamic Imaging with an FTIR step-scan option
Specifications – IRT-7100/7200 –
| IRT-7100 | IRT-7200 | |
| Measurement Method | Transmittance/Reflectance measurement | |
| Standard Detector | Single mid-band MCT (7800-600 cm-1) | Linear array MCT (7000-650 cm-1 x 16 elements) Single mid-band MCT (7800-600 cm-1) |
| Microscope Objectives | Cassegrain: 16 x 32 x or 10 x | |

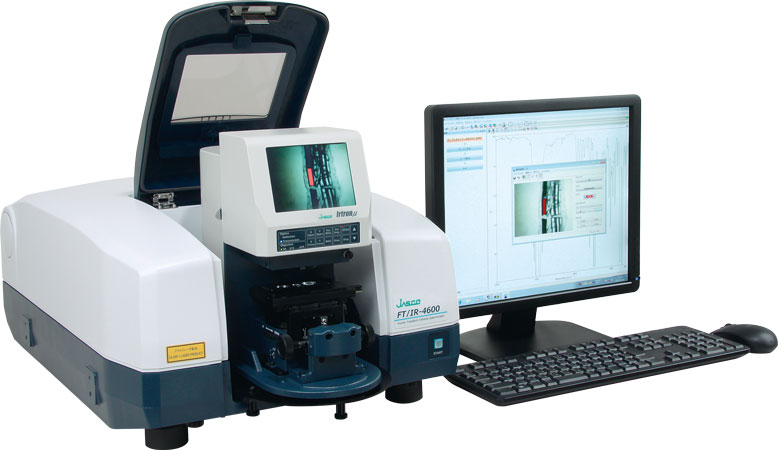

IRT-1000 Compact, In-Compartment Microscope
Designed for ease-of-use and compatible with both the FT/IR-4X and 6000 series, this in-compartment microscope features:
• Quick in-compartment installation without optical alignment
• Transmittance, reflectance and ATR analysis modes
• Manual stage
• Front-panel controls for simplified measurements
• Dedicated PC software for control and analysis
• View sample and record spectral data simultaneously
