JASCO unique rectangular cell with superior usability

Novel sampling cell was developed based on the customer feedback and needs.
(US patent: US D925,381, Europe patent: DM/205719, UK patent: GB 82057190001000, China patent: ZL201930223409.3)

Efficient pouring and flushing
RQC cells are designed for easy, bubble-free sample pouring and thorough flushing.

Superior temperature control
RQC cells quickly reach the set temperature due to the large contact area between cell jacket and cell.

Small-volume sampling
Minimum sample volume of 3 mm RQC cell with 100 mm optical pathlength is approx. 1 mL.

---

Plenty cell lineup

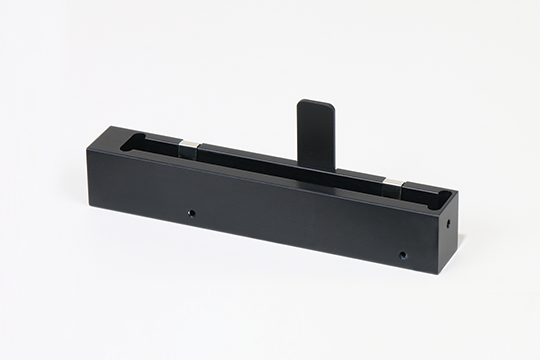

Each sampling cell is used with the dedicated cell jacket.

Model	P-4100	P-4200	P-4300

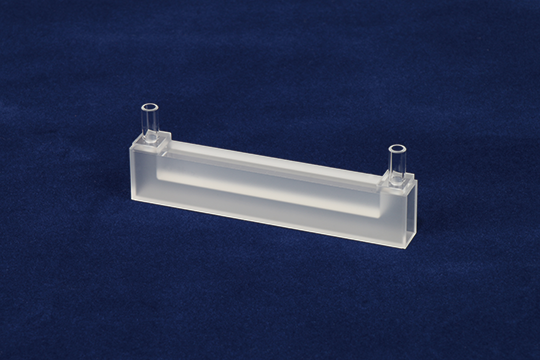

Rectangular quartz cell
RQC-450	8.5 mm × 8.5 mm × 100 mm
RQC-451	8.5 mm × 8.5 mm × 50 mm
RQC-452	8.5 mm × 8.5 mm × 10 mm
RQC-453	-*	3 mm × 3 mm × 100 mm
RQC-454	-*	3 mm × 3 mm × 50 mm
RQC-455	-*	3 mm × 3 mm × 20 mm

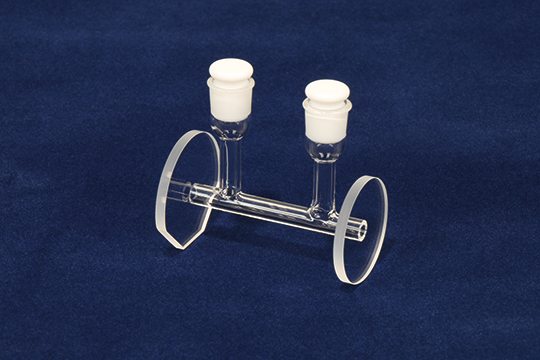

Cylindrical quartz cell
J/39.105/Q/100/12	φ10 mm × 100 mm
J/39.105/Q/50/12	φ10 mm × 50 mm
J/39.35/Q/100/6	-*	φ3.5 mm × 100 mm
J/39.35/Q/50/6	-*	φ3.5 mm × 50 mm
J/39.35/Q/10/6	-*	φ3.5 mm × 10 mm

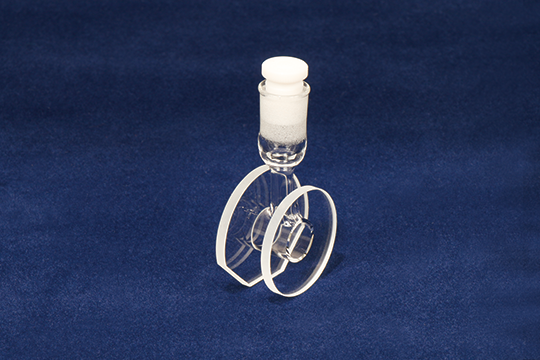

Cylindrical glass cell
J/39.105/PX/100	φ10 mm × 100 mm
J/39.105/PX/50	φ10.5 mm × 50 mm
J/39.105/PX/10	φ10.5 mm × 10 mm

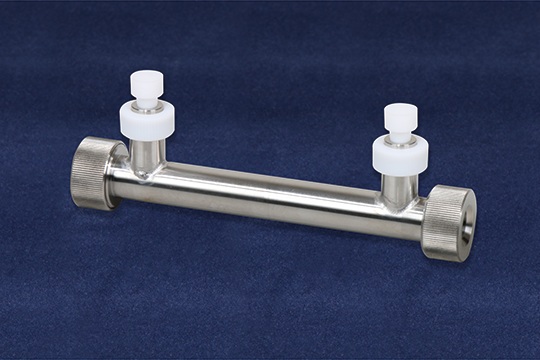

SUS demountable cell
PAC1-100	φ10 mm × 100 mm
PAC3-100	-*	φ3.5 mm × 100 mm

*3 × 3 mm rectangular cell and φ3.5 mm cylindrical cell do not work with P-4100.

---

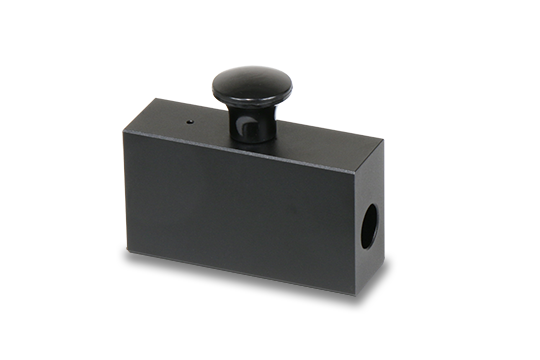

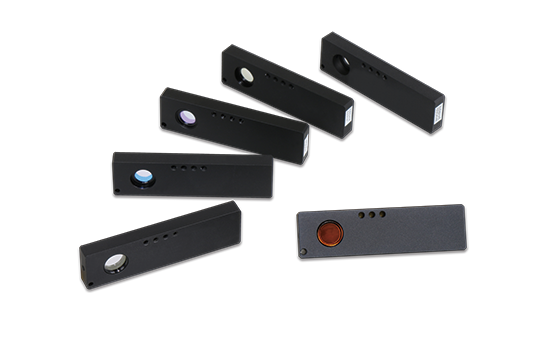

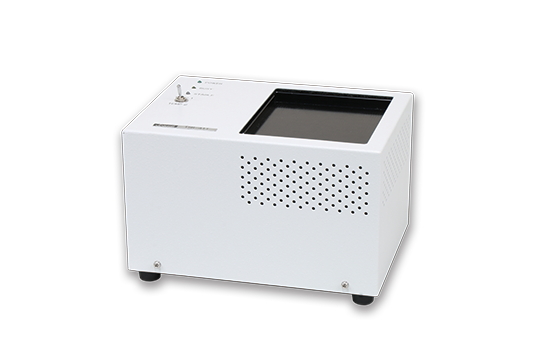

Dedicated accessories for P-4000 Series
